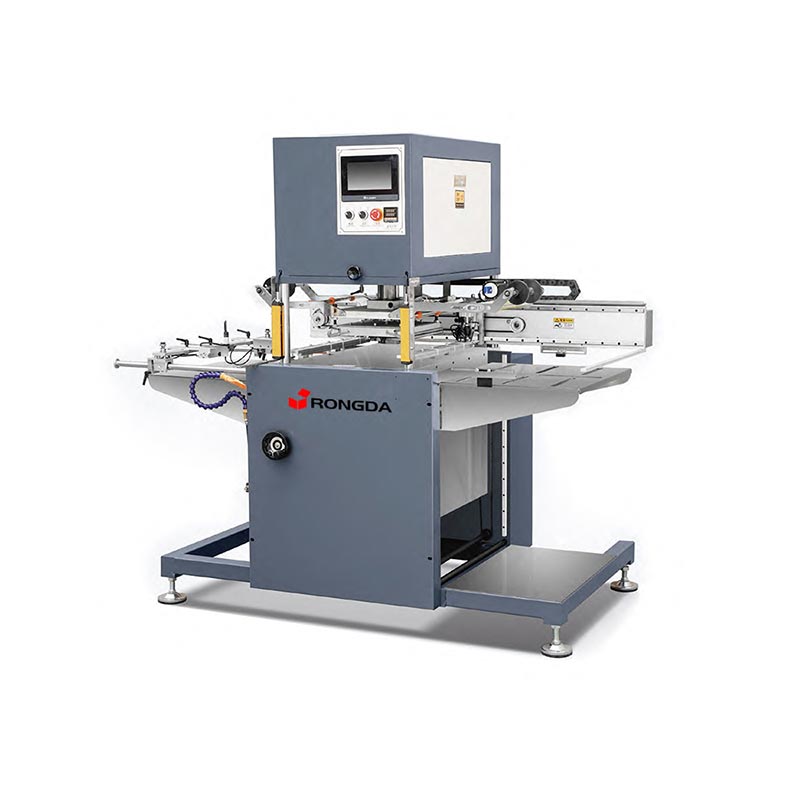

Automatic Sheet-to-Sheet Foil Stamping Machine

Rongda is a manufacturer and has strong production ability, our TY550 Automatic Sheet-to-Sheet Foil Stamping Machine for leather goods is a latest automatic foil stamping equipment which is widely used in foil stamping may kinds of paper and other flat materials, such as the invitation card, name card, red pocket, package paper boxes etc. It can make the products more personalization and more exquisite.

Operating Procedures

1. Install and positioning of hot stamping plate, hot foil, and standby materials to to guarantee that all components are correctly set up for the stamping task.

2. Adjustment of hot stamping temperature, pressure and speed based on material to a rate that allows for consistent and high-quality results.

3. Start the Automatic Sheet-to-Sheet Foil Stamping Machine to do a small amount of material. This allows for an initial assessment of the stamping effect and provides an opportunity to make any necessary adjustments. According to the test results, fine-tune the parameters to achieve the desired results. The process is repeated until the results are optimized.

4. Continuous operation to check the quality of the product for any deviation or inconsistency. If any problems are found, adjust the parameters to maintain consistent print quality.

5. Shut down and clean up the work area, removing any leftover materials at the end of the day to ensure it is in good condition and ready for the next use.

Features:

1. Using PLC, high sensitivity and simple and convenient operation, 1 person can operate.

2. Stamping pressure, temperature and speed can be adjusted according to different product materials to ensure that each application can get the best results.

3. The feeding guide rail can be adjusted horizontally and vertically, providing a simple and efficient solution for material positioning and alignment during stamping.

4. Bronzing plate lifting can be fine-tuned by touch screen input to ensure the quality of all embossed products.

5. The servo motor is used to feed and receive paper, and the photoelectric positioning technology is used to realize high-precision material processing, so as to minimize the error in the production process.

6. The receiving table has the function of automatic lifting without manual adjustment, which simplifies the working process and improves the operation efficiency.

7. The Automatic Sheet-to-Sheet Foil Stamping Machine is equipped with a grating to protect the operator. When the operator is close to the dangerous area, the machine will automatically stop to ensure the safety of the operator and comply with industry regulations.

Product Parameter (Specification)

Production Details

TY550

Samples
