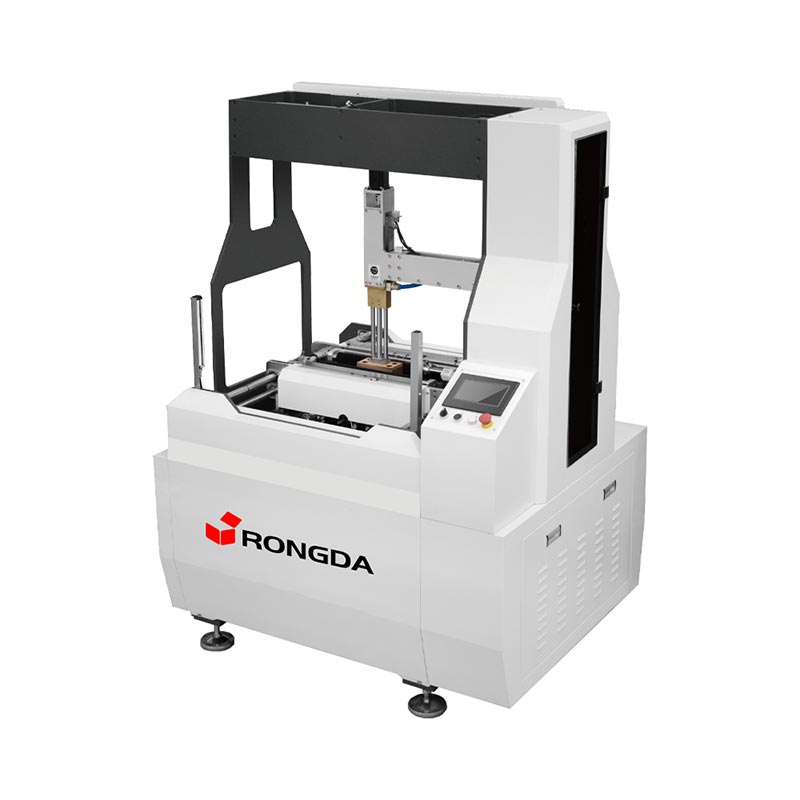

Rigid Box Wrapping Machine

The rigid box wrapping machine of Wenzhou Rongda Packaging Equipment Co., Ltd. is one of our hot-selling products. This machine is an indispensable step in the production of rigid boxes. It is flexible and can be used alone, can also match other semi-automatic equipment online use, very suitable for small and medium-sized batch production. This machine is perfect for both start-ups and established businesses.

Product Parameter (Specification)

Product Feature And Application

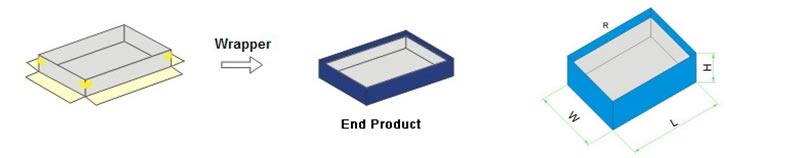

The BF550 rigid box wrapping machine is one of the more cost-effective machines. It can be made in a range of sizes up to 500 * 550 * 150 mm, Min: 80 * 90 * 10 mm, Max. speed of 25pcs/min, its production size range covers most of the ordinary box type on the market, suitable for Ring Box, earring box, necklace box, cosmetics box, etc.. This device is ideal for start-ups to purchase and meet most manufacturing needs. The other BF600A is made in a range of sizes from 600 x 480 x 150 mm to 80 x 60 x 10 mm and is a bit slower at 22pcs/min. . This section of equipment is more suitable for the production of high-grade shoe boxes, clothing boxes.

In terms of technology, our machines are equipped with PLC control system, the interface is simple and easy to use, which greatly reduces the barrier to entry, even novices who haven't been in the industry can pick it up quickly through simple learning. In addition, in order to ensure the safety of the operator, our machine is equipped with emergency stop, photoelectric detection and other safety devices, in line with CE standards, for the production process to provide a comprehensive security. Our rigid box wrapping machine is molded in one piece without defoaming and produces rigid boxes to production standards.

This machine also has the function of automatic adjustment mold, equipped with the PLC can store 200 size parameters, when changing the box type as long as the selection of the corresponding data, the machine will automatically adjust, reduce the mold replacement time. This feature is very important for small-batch production. If you would like to know more about our models, or want to customize the special box type, please contact our team, we will provide professional packaging solutions!

Production Details

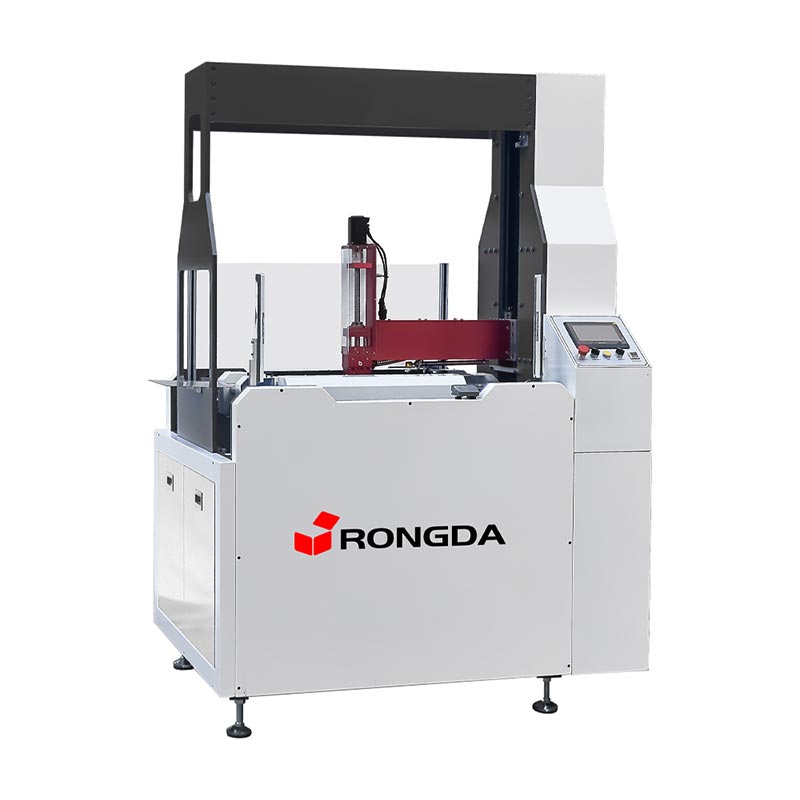

BF450 Rigid box wrapper

Feature:

1.Main drive

Main drive adopts double servo driver, runs smoothly, wrapping flexibly, can adjust for various size of cardboard and paper thickness. Run in high stability. Can fold paper turn in deep depth, ranges 10-90mm, flexibly adjust and no rebound.

2.Fully automatic control center

The whole machine is run by automatic control center, which ensures the accuracy and use life of the machine, advanced than our competitors.

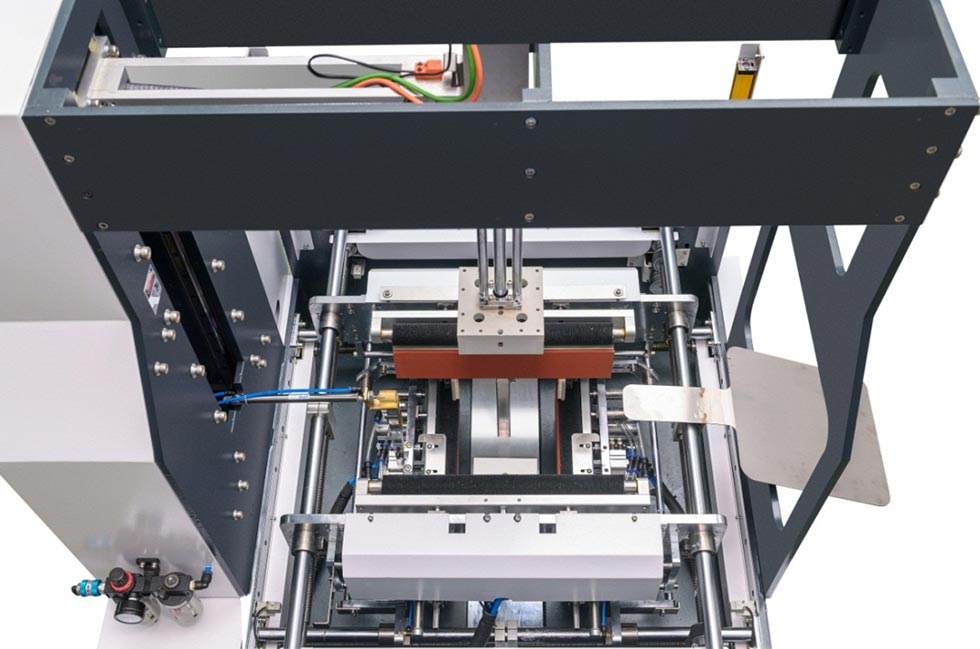

3.Bubble pressing

Four sides pressing section adopts double guide rail and screws adjustment, accurately positioning, convenient adjustment, high efficient. Four side bubble pressing section has two times bubble pressing function. Adopts misplaced pressing board installation, no need customize the pressing board for different size boxes which saves costs and mold setting time.

4.Ear folding section

Ear folding section adopts guide positioning, flexible spring, not easy to break paper and cardboard; quick and convenient adjustment, good performance. Machine can do 3 times folding.

5.Output device

Output device adopt mode of cylinder synchronous run, stable running. The off box section adopts automatic air exchange and internal removal structure. Simple structure, convenient adjustment, it’s suitable for small size box.

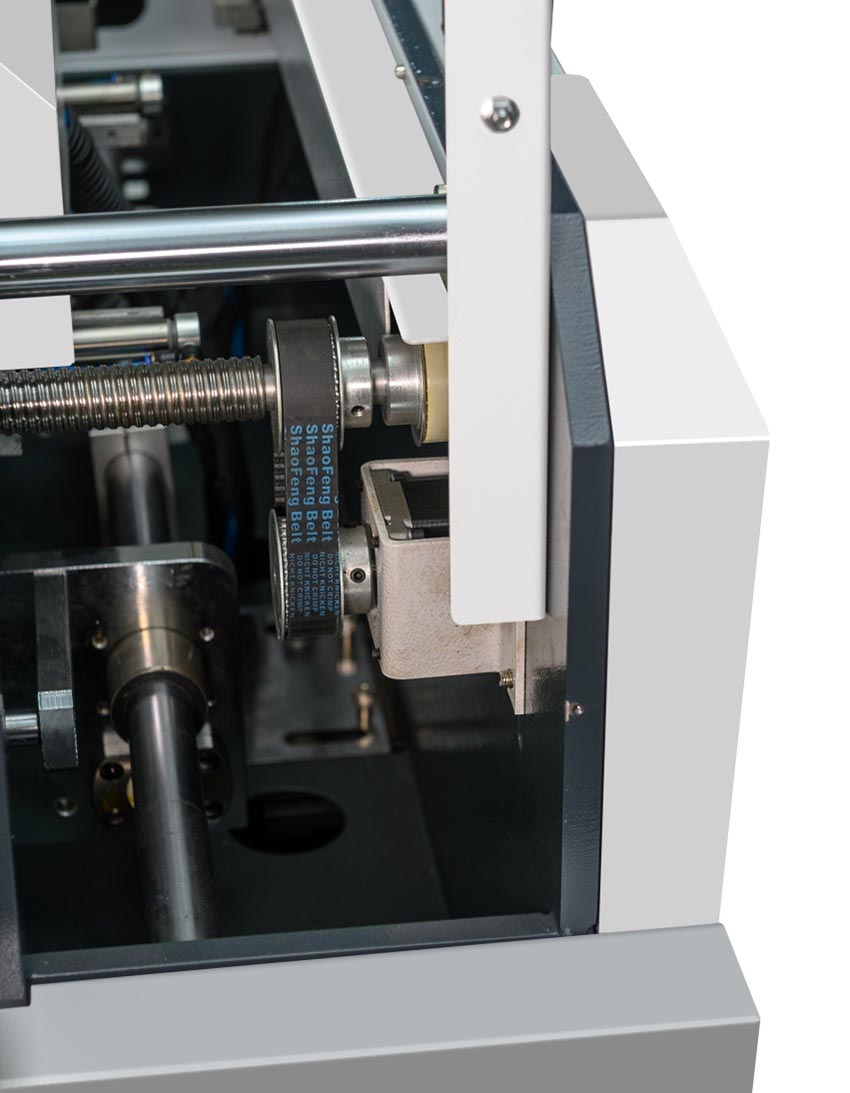

6.Helical gear transmission shaft

The helical gear drive spindle is stable, accurate, reliable, high output, long service life. The whole machine can realize the slow motion.

7.Emergency stop & Touch screen

The Rigid Box Wrapping Machine equipped with touchable emergency stop. And size adjustment can be adjusted by touch screen computer automatically, easy to adjust.
