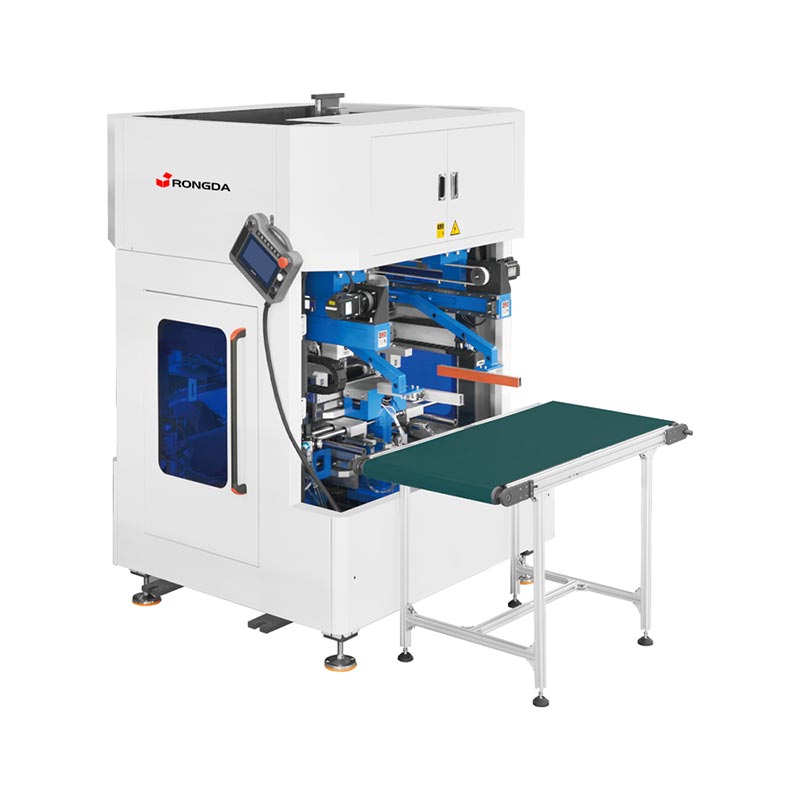

Semi-auto Rigid Box Wrapping Machine

Rongda is a professional supplier of durable Semi-auto Rigid Box Wrapping Machine, it can be used with positioning machine and corner pasting machine to achieve fully automatic mode, paper feeding, gluing, rigid box corner pasting, positioning, rigid box forming. Also can according to the customer's production habits free combination.

Product Parameter (Specification)

Product Feature And Application

ABF450 Semi-auto Rigid Box Wrapping Machine this machine is an updated version of BF450 Rigid Box Wrapping Machine. It is a very intelligent Machine, greatly reduced the time to change the mold.

Equipped with mechanical arm not only improve production efficiency, but also ensure the quality of rigid box molding, avoid the loss caused by manual operation.

The ABF450 rigid box wrapper has a wide range of applications, covering virtually all industries requiring high-quality lidded box packaging. Whether it's the delicate packaging of fashionable consumer goods like phone cases, shoes, and cosmetics, the luxurious presentation of high-end items like jewelry and shirts, or the practical packaging of traditional fast-moving consumer goods like alcohol, cigarettes, tea, and candy, the ABF450 can meet diverse customer needs with outstanding performance. Its precise molding process and stable operating performance ensure that every box meets industry-leading quality standards.

Production Details

1. Main drive

Main drive adopts double servo driver, runs smoothly, wrapping flexibly, can adjust for various size of cardboard and paper thickness. Run in high stability.

2. Fully automatic control center

The whole machine is run by automatic control center, which ensures the accuracy and use life of the machine.

3. Bubble pressing

Four sides pressing section adopts double guide rail and screws adjustment, accurately positioning, convenient adjustment, high efficient. Four side bubble pressing section has two times bubble pressing function. Adopts misplaced pressing board installation, no need to customize the pressing board for different size boxes which saves costs and mold setting time.

4. Ear folding section

Ear folding section adopts guide positioning, flexible spring, not easy to break paper and cardboard; quick and convenient adjustment, good performance. Machine can do 3 times folding.

5. Output device

Output device adopt mode of cylinder synchronous run, stable running. Take off box section adopts automatic air exchange and internal removal structure. Simple structure, convenient adjustment, it’s suitable for small size box.

6. Helical gear transmission shaft

The helical gear drive spindle is stable, accurate, reliable, high output, long service life. The whole machine can realize the slow motion.

7. Emergency stop & Touch screen

The Semi-auto Rigid Box Wrapping Machine equipped with touchable emergency stop. And size adjustment can be adjusted by touch screen computer automatically, easy to adjust.

8. Mechanical arm

The arms adopt the two separate servo motor which can move unsynchronized. When box is arriving at the arms, one arm moves out to block it, then another arm move out to hold it together, finally they deliver the box to the mold.
