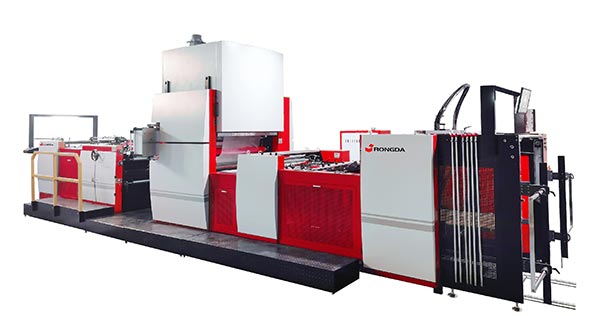

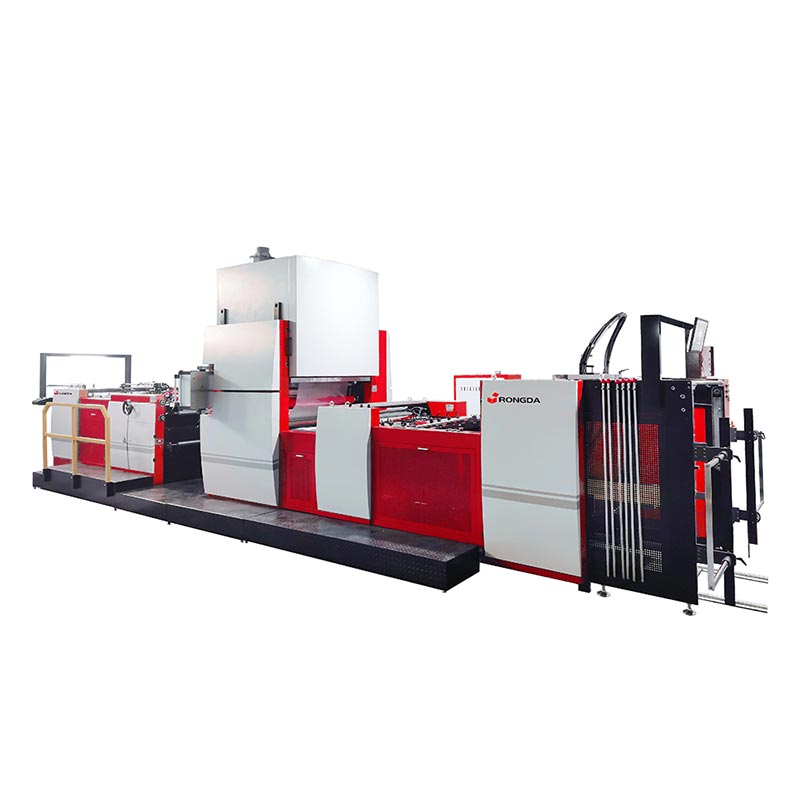

Rongda is a supplier of RD-ZFM1080/RD-ZFM1300 Automatic Film Laminator with Powder Remover, it can not only be used for water-base glue, but also can be used for thermal film. The laminating machine includes gluing, drying, pressing and slitting, and equips with a powder removing device, which helps clean up the dust on the surface of the paper, improve the overall quality of the finished product.
Rongda RD-ZFM1080/RD-ZFM1300 Automatic Film Laminator with Powder Remover is a popular machine for printing and packaging
plants with high production requirements. If you are looking for a reliable supplier of packaging equipment, and want to develop long-term cooperation, you can choose us.
Features:
1. Four suction and four feeding feeder can move back and forth, convenient size of paper feeding.
2. The conveying bridge adopts the double protection of air suction and pressure wheel to realize high-speed paper feeding and no paper displacement.

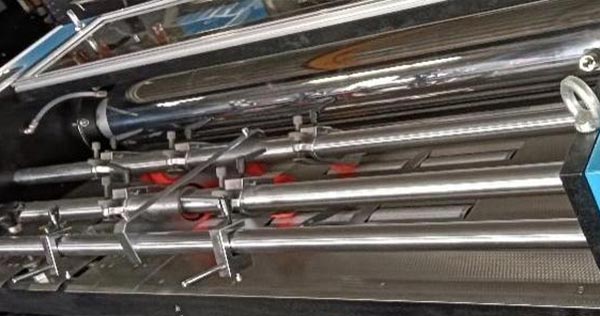

3. The dedusting part is made of chrome-plated steel roller with high precision machining and heated when the machine runs, which can effectively absorb dust after the paper passes through.
4. Mold temperature, heating pipe and hot air drying, so that the water-based adhesive can be fast curing, high-speed film laminating.

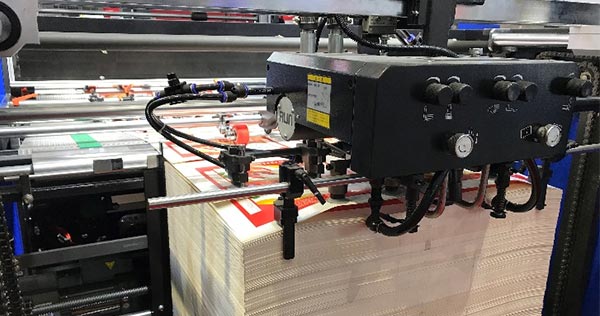

5. Pneumatic paper clapping mechanism makes the paper more tidy when collecting and it can set the frequency to pat the paper
Product Parameter (Specification)
ZFM1080SC
ZFM1080MC
ZFM1080LC
ZFM1300LC
ZFM1300XLC
ZFM1300XXLC
Film Type
BOPP only
BOPP only
BOPP only
BOPP only
BOPP only
BOPP only
Max. sheet size(W*L)
1080*880mm
1080*1200mm
1080*1450mm
1300*1450mm
1300*1650mm
1300*1800mm
Min. stripping size(W*L)
320*260mm
320*260mm
320*350mm
320*350mm
320*400mm
400*450mm
Speed
20-100 meters / min
20-100 meters / min
20-100 meters / min
20-100 meters / min
20-100 meters / min
20-100 meters / min
Paper Thickness
80-500g/m²
80-500g/m²
80-500g/m²
80-500g/m²
80-500g/m²
80-500g/m²
Max. consumption power
73KW (AC380 V/3PH/50Hz)
74KW (AC380 V/3PH/50Hz)
75KW (AC380 V/3PH/50Hz)
88KW (AC380 V/3PH/50Hz)
89KW (AC380 V/3PH/50Hz)
89KW (AC380 V/3PH/50Hz)
Max. piling height
1300mm
1300mm
1300mm
1300mm
1300mm
1300mm
Machine dimensions
10900*2900*3100 mm
12000*2900*3100mm
13600*2900*3100mm
13600*3100*3100mm
14100*3100*3100mm
15100*3100*3100mm
Weight
9800 KGS
10000kg
10600kg
12800kgs
13000kg
13400kg
About us
Wenzhou Rongda Packaging Equipment CO,. LTD is a professional Automatic Film Laminator with Powder Remover manufacturer, with customers covering more than 80
countries and regions. The company takes the whole production process of gift box packaging as the core, providing
customers with all-round service, covering laminating machine, die-cutter, groover, gluer, positioning machine, forming
machine, pressure bubble machine, assembly machine, packaging and other professional equipment.
High-quality products can not be separated from perfect after-sales service. So we provide a one-year warranty for each
machine, and equipped with experienced professional after-sales team to ensure that 72 hours to respond to customer
needs. Whether it is equipment debugging, routine maintenance or sudden failure, our after-sales staff will be the first
time to provide you with technical support and solutions.
Production Details
ZFM1080/ ZFM1300

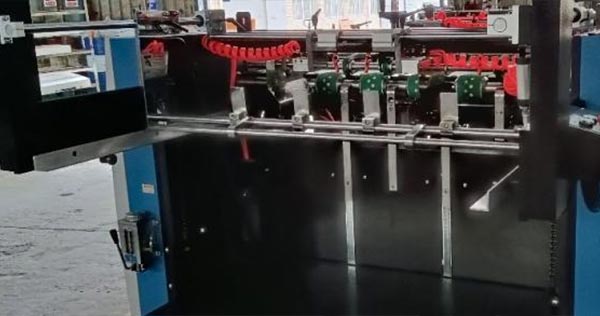

Non-stop feeder
Corona Device (Option)

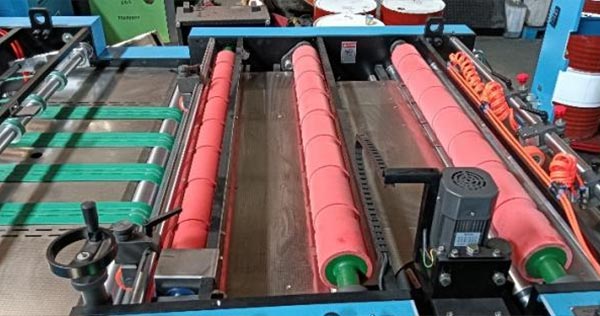

Rotary cutter
Non-stopping collection

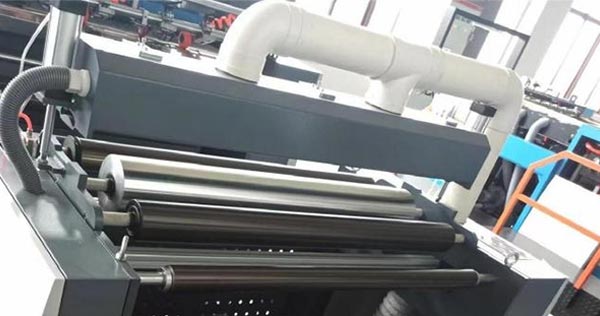

Electrothermal Powder Removal
