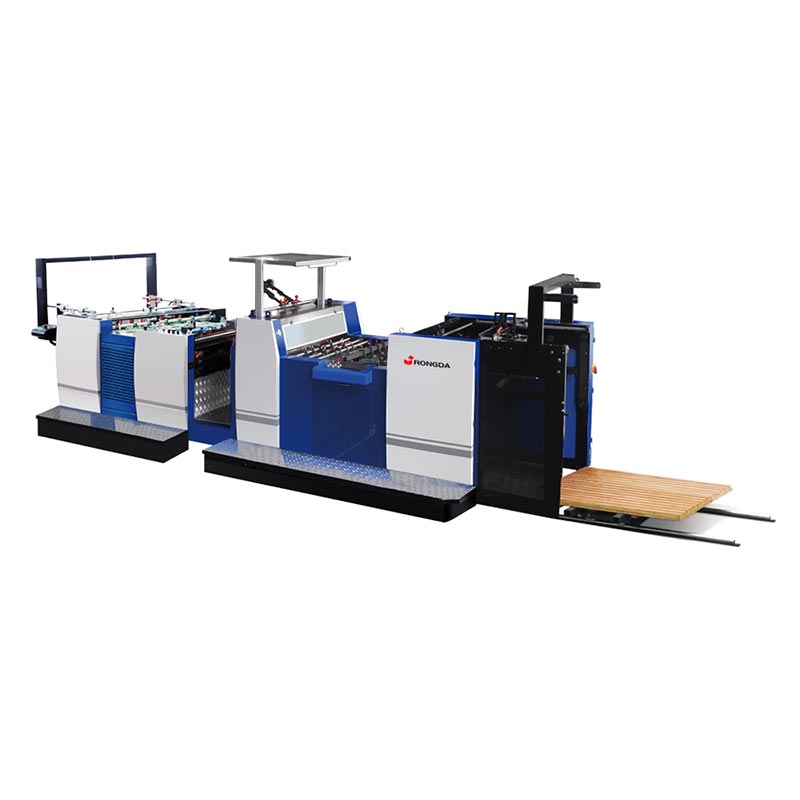

Automatic Thermal Film Laminator

YZFM Automatic Thermal Film Laminator is a new model from the reliable supplier, Rongda. It develops and designs according to the market demand by absorbing the merits of similar products from both abroad and home. It has compact structure, small floor coverage, convenience in operation, and simple maintenance. It has optical, electric, pneumatic, mechanic integrated control, and this new model of laminating machine is environmental protective, saves energy, and has high efficiency and humanized design.

According to need, it can use thermal film to give surface protection to printed matter. It is widely used in outer packing of teaching material, book, periodical, picture album, manual, wall map, geographic map and audiovisual products, and handbags. YZFM Automatic Thermal Film Laminator can stand as a powerful guarantee to improve the laminating quality of printed matter for insiders of the trade, and reduce cost, and create high profit, and it is the ideal post-print processing model for printing houses to eliminate traditional high energy-consumption heavy-pollution paper-plastic bonding equipment.

Product Parameter (Specification)

Product Feature And Application

YZFM Automatic Thermal Film Laminator adopts speed control by frequency variation, PLC centralized control, and man-machine interface display. It consists of automatic paper feeder, front rule, pull rule, film supply, film slitting and punching device, thermos compression lamination and laminating on-off control system, curl-removing device, cutting machine, paper collecting stacker etc. It realizes lamination between printed matter of different widths and different thicknesses, thermal film, and the printed matter after lamination will go through a curl-removal device, and splitting device, to form single sheet of laminated printed matter. After stacker collects them into piles, proceed to the next work process.

Machine features:

■ High speed feeder

With double sheets detect device.

■ Laminating unit

The diameter of main pressing steel roller is 380mm. This steel roller is heated by heat transfer oil (Mold Temperature Controller machine). So temperature can reach 85-125ºC. This machine is equipped with film separating and punching devices. Paper overlap adopts servo technology, with high precision.

■ Separating unit

The products passed the punching devices were separated easily. There are pressing roller and pulling roller to separate sheets.

Separating unit adopts pneumatic device, it is automatic, operated easily.

■ Delivery unit

Automatic stacker

Primary structure:

YZFM-1080SA , with convenient structure. The whole machine consists of:

● Auto paper feeder,

● front limiter,

● pulling limiter,

● thermal film supply,

● film punching and slitting device,

● heat pressing lamination,

● magnetic powder controlled tension wind-up roller,

● curl-removing device,

● laminated paper belt cutting device,

● paper collector stacker.

Laminating temperature and pressure:

thermal film:

for ordinary sheet, set the lamination roller heating temperature at 115 ℃ ~ 120 ℃,

for sheet of relatively dark color and tissue sheet, set at about 125℃.

Pressure:

Normally 4 MPa, and for deep color sheet and tissue sheet, you can set 6 MPa.
