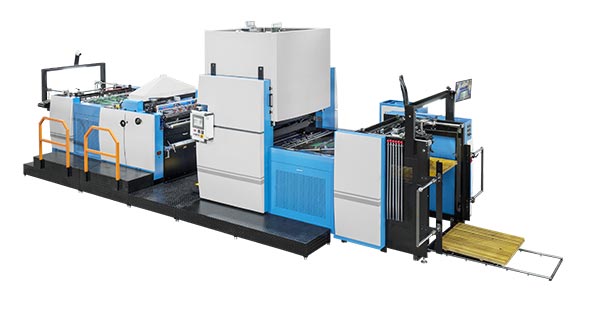

Automatic Hot Knife Film Laminating Machine

RD-HFM1080/RD-HFM1300 Automatic Hot Knife Film Laminating Machine is newly developed by Rongda, a reliable China manufacturer. It is suitable for high speed and stable production, and widely used in the packaging of various high-grade products to protect the ink.

Features:

1. High precision feeder with 4 sending and 4 suction function has good stability, the max. paper feeding speed can be 12000 sheets / hour.
2. Double-sheet detector: stop working automatically to protect machine when feeding more than one piece of paper.
3. The main part of Automatic Hot Knife Film Laminating Machine adopts castings to ensure the stability of the machine at high speed. Adopts the imported parts, service life long.
4. High-precision hot-pressed chrome-plated rollers provide an effective guarantee for coating quality.
5. The large sized roller surface is chrome plated and polished, with long service life and easy cleaning. It works with the heating tube to dry fast.

Product Parameter (Specification)

	HFM1080SR	HFM1080MR	HFM1080LR	HFM1300LR	HFM1300XLR	HFM1300XXLR
Film Type	BOPP/OPP/PET/PVC	BOPP/OPP/PET/PVC	BOPP/OPP/PET/PVC	BOPP/OPP/PET/PVC	BOPP/OPP/PET/PVC	BOPP/OPP/PET/PVC
Max. sheet size(W*L)	1080*880mm	1080*1200mm	1080*1450mm	1300*1450mm	1300*1650mm	1300*1800mm
Min. stripping size(W*L)	320*260mm	320*260mm	320*350mm	320*350mm	320*400mm	400*450mm
Speed	20-100 meters / min	20-100 meters / min	20-100 meters / min	20-100 meters / min	20-100 meters / min	20-100 meters / min
Paper Thickness	80-500g/m²	80-500g/m²	80-500g/m²	80-500g/m²	80-500g/m²	80-500g/m²
Max. consumption power	79KW (AC380 V/3PH/50Hz)	80KW (AC380 V/3PH/50Hz)	81KW (AC380 V/3PH/50Hz)	90KW (AC380 V/3PH/50Hz)	90KW (AC380 V/3PH/50Hz)	90KW (AC380 V/3PH/50Hz)
Max. piling height	1300mm	1300mm	1300mm	1300mm	1300mm	1300mm
Machine dimensions	9300*2900*3100 mm	10400*2900*3100mm	12000*2900*3100mm	12200*3100*3100mm	12700*3100*3100mm	13300*3100*3100mm
Weight	10300 KGS	10500kg	11100kg	13100kgs	13000kg	13400kg

About us

Wenzhou Rongda Package Equipment Co., Ltd. is a supplier specializing in high-end finishing equipment for premium packaging boxes. Possesses its own export qualifications and has served over 80 countries and regions. The company has a professional team to meet the needs of diversified customers. Its products with excellent durability and stability in the packaging industry widely recognized. Wenzhou Rongda ensures timely technical support and customized solutions, has won the trust of global customers and long-term cooperation.

Production Details
