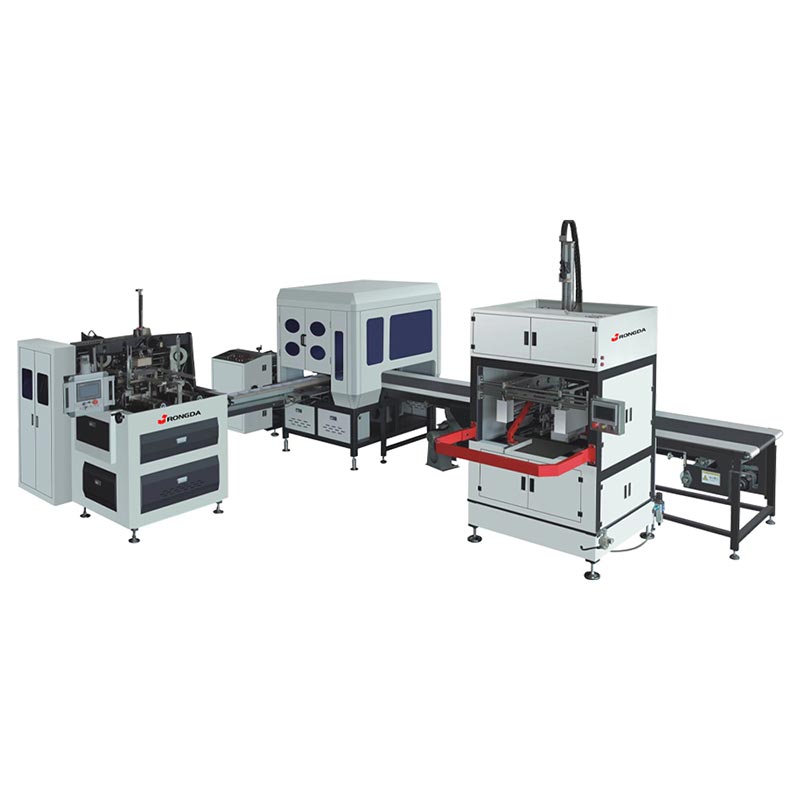

Automatic Rigid Box Maker

RB500 Automatic Rigid Box maker is a good equipment which is applicable to make rigid boxes for phones, shoes, cosmetics, shirts, moon cakes, liquors, cigarettes, tea, toy etc.. It employs PLC, photoelectric detector system, Robot and camera positioning system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and pasting four angles of cardboard, positioning, and forming box in one time. Choose Rongda as your manufacturer and supplier, and enjoy our one-stop packaging machine solutions.

Product Parameter

What Technology Do We Use On This Machine?

As a professional, intelligent machine, RB500 Automatic Rigid Box Maker has comprehensive functional configurations, encompassing the core technical modules required for the entire rigid box production process. For the paper conveying process, it has a vacuum suction system. A high-efficiency vacuum fan positioned beneath the conveyor belt creates a stable negative pressure environment, and can prevent the glued paper from shifting or moving during transport. This system helps to get better gluing accuracy and consistent product quality.

We also use a programmable logic controller as its core control system, together with a high-precision robotic arm and an intelligent visual positioning system, lets the control of the process become more digital and precise. Because of the real-time image feedback, the machine achieves positioning accuracy of ±0.3mm. Furthermore, its onboard photoelectric detection module synchronizes its response with the forming mechanism in milliseconds, monitoring material status in real time to ensure error-free rigid box forming, improving production efficiency and yield rate.

Our Services

For operational convenience, the RB500 uses a modular human-machine interface design, providing a highly visual workflow. To ensure smooth production for customers, Rongda offers comprehensive technical training services: We dispatch experienced engineers to conduct hands-on training on-site, and we also invite customer technical personnel to study at our headquarters. Training covers a comprehensive range of topics, including equipment principles, operating procedures, maintenance, and troubleshooting. Trainees are required to pass assessments and certifications before they can begin their work. Furthermore, the company maintains a 24/7 online technical support platform, staffed by a dedicated team of technical consultants. They provide comprehensive guidance from equipment installation and commissioning to mass production, and a double-confirmation mechanism is implemented at every critical stage, completely eliminating customer concerns.

Production Details

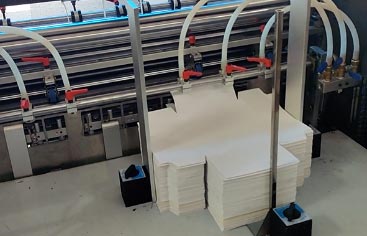

	Automatic Paper feeder Simple structure, easy to set up.

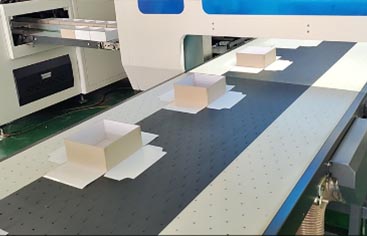

	Dual colors conveyor belt Black and white color belt, available for all colors of paper.

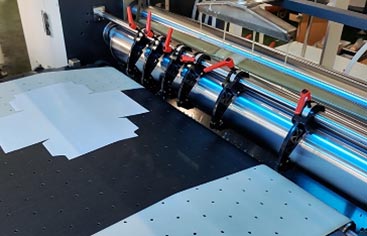

	Hot glue system Automatic circulation, mixing and gluing system for hot-melting
	Servo type wrapping unit Accurate positioning improves the quality of wrapping and automatic setting function reduces the changing time.

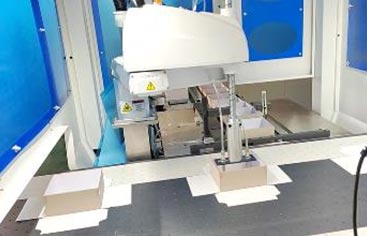

	Robot positioning device Adopt the latest camera and robot positioning system, improve the accuracy and speed.

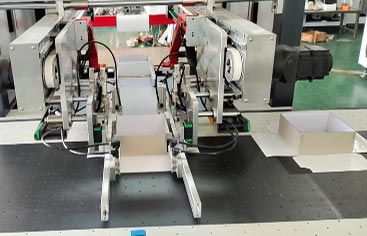

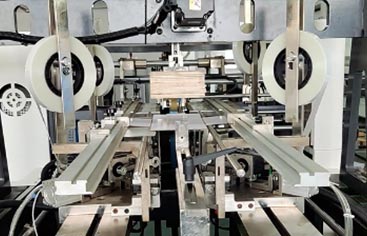

	Auto pasting box four corners Adopt environment-friendly tape to paste the box angles, which can paste four angles in one process with neat appearance.

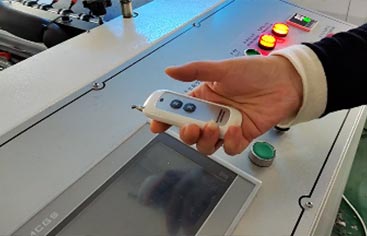

	Remote switch The operator can control the machine at any area of machine which make the setting and operation simpler.

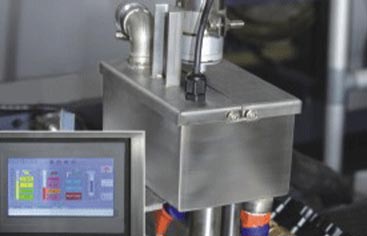

	Glue viscosity meter(Optional) Auto glue viscosity meter efficiently adjusts the glue stickiness which ensures the quality of finished products.
